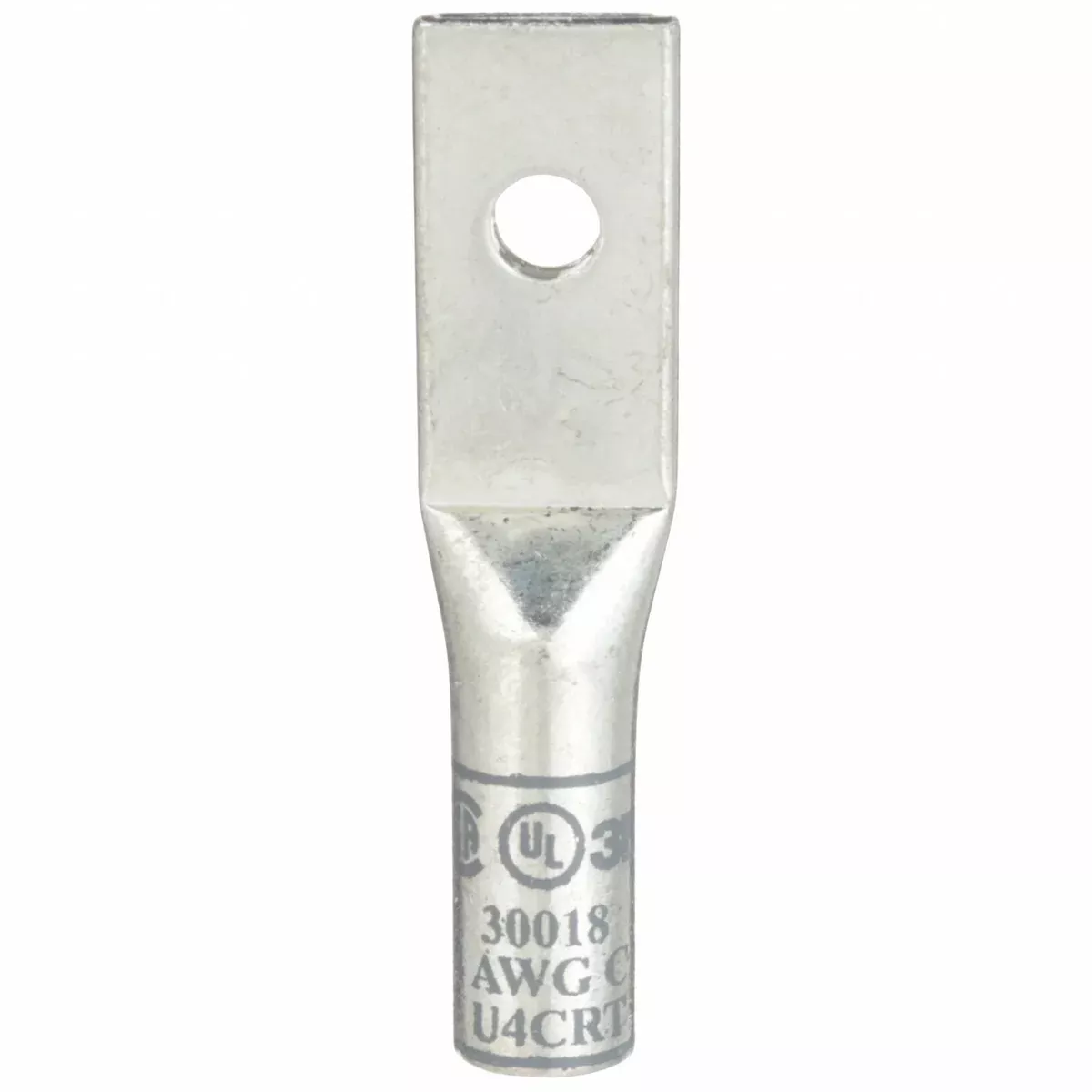

Compression Lugs, Barrel Size Standard, Color Code Gray, Die Code 8, 95, Tongue Angle Straight, Tongue Width 0.48 in, For Conductor Material Copper, For Stud Size 10, For Stranded Copper Wire Size – Maximum 4 AWG, Inspection Hole No, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 1, RoHS Compliant Yes, Barrel Inside Diameter 0.24 in, Barrel Outside Diameter 0.34 in, Barrel Style Chamfered
| For Wire Size | 4 AWG |
|---|---|
| For Stud Size | 10 |
| Barrel Size | Short |
| Tongue Width | 0.48 in |
| Width | 0.485″ |
| Length | 1.94″ |
| Tongue Length | 0.89 in |
| Overall Width | 0.49 in |
| Country of Origin | Chile |
